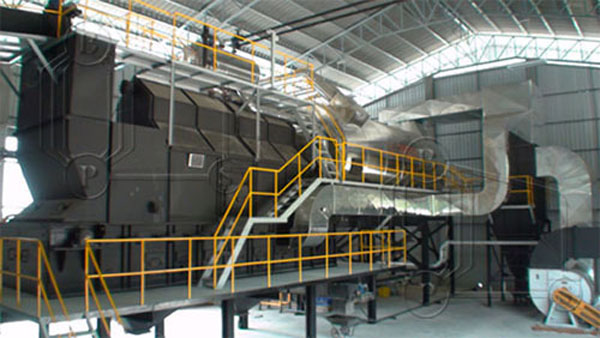

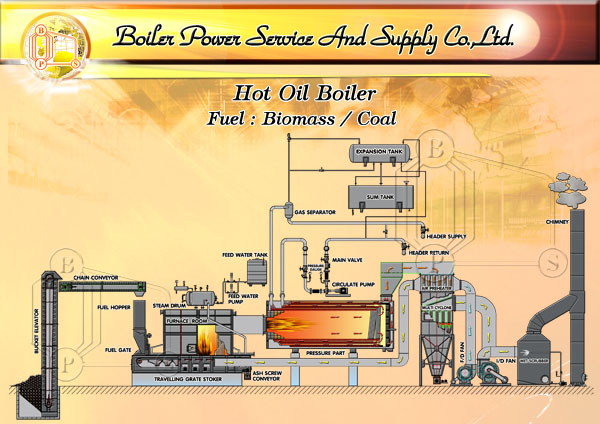

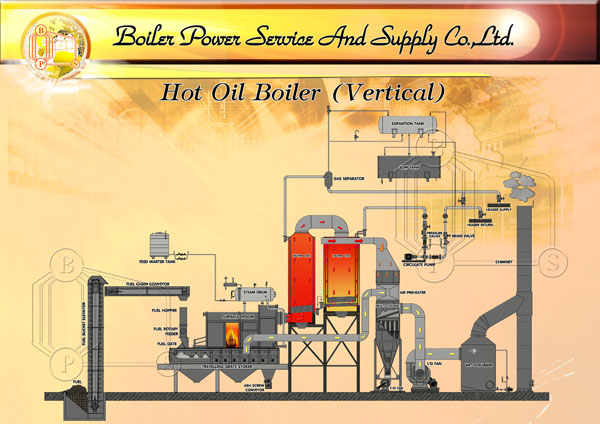

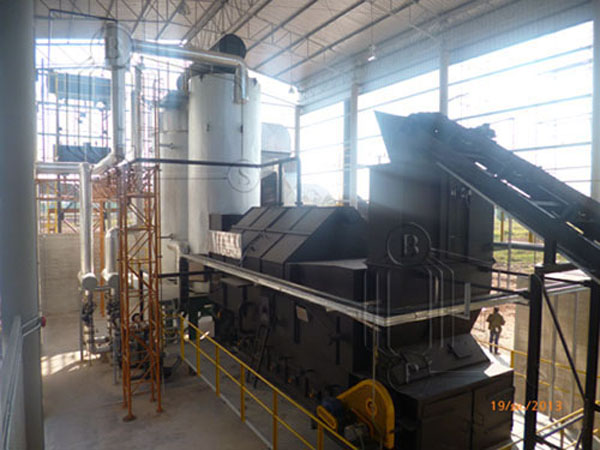

HOT OIL BOILER |
| |
Boiler is a type of heat exchanger by using hot oil conduct the heat. Hot oil with no mixture of |
| water is able to do higher boiling point than water. It flow through a pipe to absorb heat from burning fuel or heat |
| from other energy and convection heat transfer to machine and other device. Then recirculate heat continuously |
| by working temperatures up to 300° C in the process. Hot oil will remain liquid at all time without boiling to vapor. |
Advantages of Hot Oil Boiler |
| |
No steam pressure in the system so there is no risk of explosion. Hot oil some grade can still liquid |
| to 343° C If steam boiler for temperature 316 ° C must be used at pressure up to 1,525 psig (105.14505 Bar) |
| Hot Oil Boiler is suitable for use at high temperatures. Investment in the whole system will be cheaper. Fuel and |
| maintenance costs are low. Oil flow in circulation makes less heat loss. Not require the system to improve water |
| quality. No need a steam trap and drains system. Also no problems with corrosion or rust inside the pipes and fittings. |
| |
