Product & Sale "BOILER" : ----->FIRE TUBE BOILER

Fire Tube Boiler AS1797 standard design fire tube three pass, wet back. We produce it from our factory and also
imported from England
Boiler from our manufacture with assembly as the following.

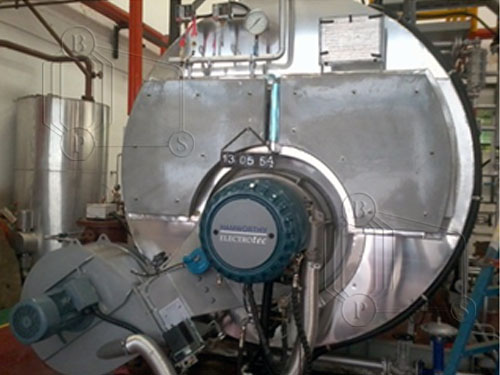

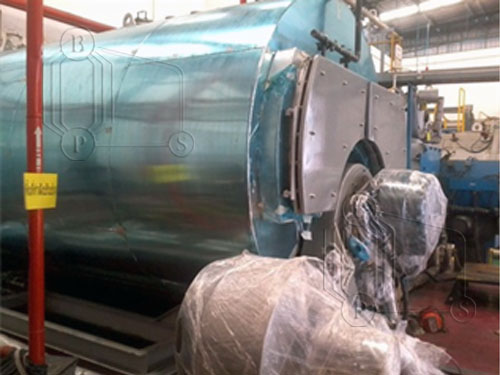

FIRE TUBE BOILER
Series : BPS



Combustion System : burners
Capacity : 2,000-20,000 kg / hr
Pressure : 10 - 25 Bar
Fuel : Heavy Oil, Light Oil, LPG, NG

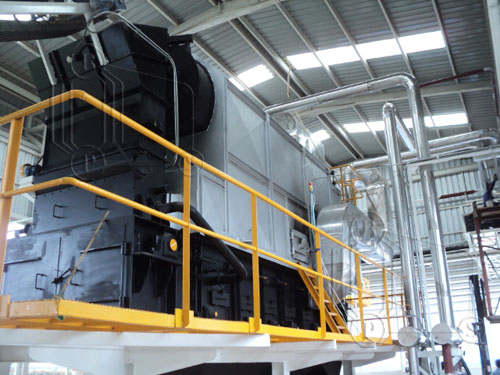

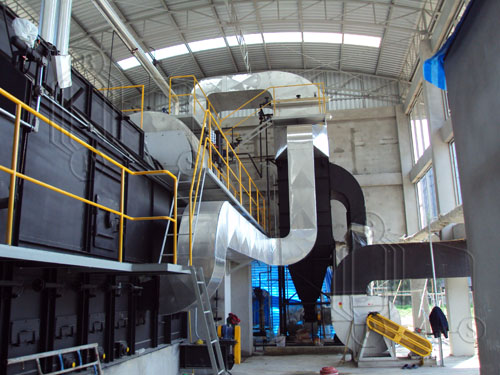

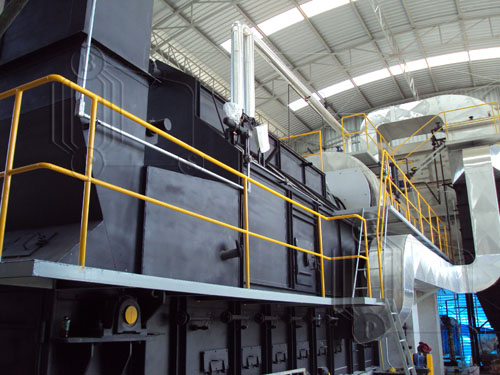

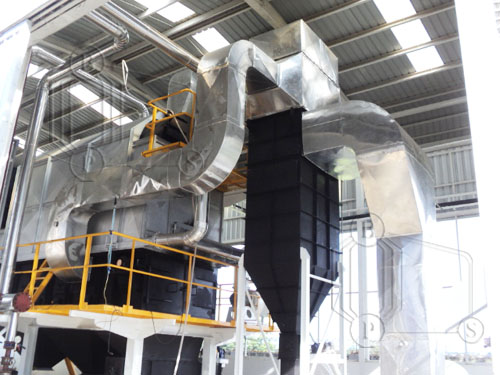

COMBI FIRE TUBE BOILER
Series : HFB

Pressure part is Fire Tube mixed to combustion chamber as Water Cool Wall and uses solid fuel.

Combustion System : Travelling Grate Stoker
Capacity : 4,000-10,000 kg / hr
Pressure : 10 Bar
Fuel : rice husk, coal, wood chips, coconut palm, corn.
